USA Signature Chris Broderick Soloist™ HT7
USA Signature Chris Broderick Soloist™ HT7
Model #:
2803157803
Regular price
$4,949.99
Regular price
$4,949.99
$4,949.99
Sale price
Unit price
per
6% Off
Couldn't load pickup availability
USA Signature Chris Broderick Soloist™ HT7
Regular price
$4,949.99
Regular price
$4,949.99
$4,949.99
Sale price
Unit price
per
6% Off
Overview
Monstrous Archtop Tone
In collaboration with Jackson Custom Shop Master Builder Mike Shannon, modern metal master Chris Broderick designed his own take on the venerable Soloist.
This 7-string hardtail axe features an offset arch top mahogany body with premium 5/8" quilt maple top or plain maple top (Gloss Black only), through-body quartersawn maple neck and binding around the body, neck and headstock. The 12"-radius ebony fingerboard with 24 jumbo frets is ideal for all playing styles, comfortable for both low riffing and soaring leads.
Contemporary guitarists require tonal versatility and punchy clarity to keep pace with the rapid twists and turns of today's metal. A pair of Broderick-designed custom DiMarzio® direct mounted humbucking neck and bridge pickups punch well above their weight, cranking out monstrous tone that will pin your ears back. The volume control conceals a push/pull switch for coil-splitting, unlocking even more tonal options while the tone control's push/pull switch enables the tone circuit. A kill switch allows for the stuttering effects that have become integral in modern metal. The Jackson® Single String hardtail bridge creates perfect intonation along the entire length of the neck to ensure complex chords ring true, working in harmony with the Planet Waves® Auto-Trim tuning machines for tuning stability that can withstand a good pick-hand thrashing without shifting.
Lastly, Ernie Ball® strap locks ensure your axe won't go flying during onstage acrobatics.
Overview
Features
- Double cutaway 7-string electric guitar
- Two Broderick-designed custom DiMarzio direct mount humbucking pickups
- Neck-through construction for enhanced sustain and playability
- Jackson Single String hardtail bridge bridge with anchored tailpiece
Highlights
Jackson Single-String Hardtail Bridge
This unique design features separate and individually direct mounted string saddles. Each string is isolated, allowing for individual resonance per string and a more focused sound.
Direct Mount DiMarzio® D Activator Chris Broderick Signature Pickups
The Broderick-designed DiMarzio® D Activator humbucking neck and bridge pickups are passive with a lot of headroom, and respond quickly and accurately to changes in pick attack. A hard pick attack doesn’t cause the signal to flatten out and picking more softly or rolling the volume control down lets the sound clean up naturally. Tonally versatile, these pickups punch well above their weight, cranking out monstrous tone that will pin your ears back, while also delivering glassy single-coil tones.
Specs
Accessories
Body
Body
Mahogany
Body Binding
Masked off Natural Maple Binding
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Soloist™
Body Top
Arched Maple
Electronics
Auxiliary Switching
2-Position Mini-Toggle Kill Switch, Push/Pull Volume Coil Split, Push/Pull Tone Kill
Bridge Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Controls
Volume (Push-Pull Coil Split), Tone (Push-Pull On/Off Tone Control Activation)
Neck Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Pickup Configuration
HH
Special Electronics
2-Position Mini-Toggle Kill Switch
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color

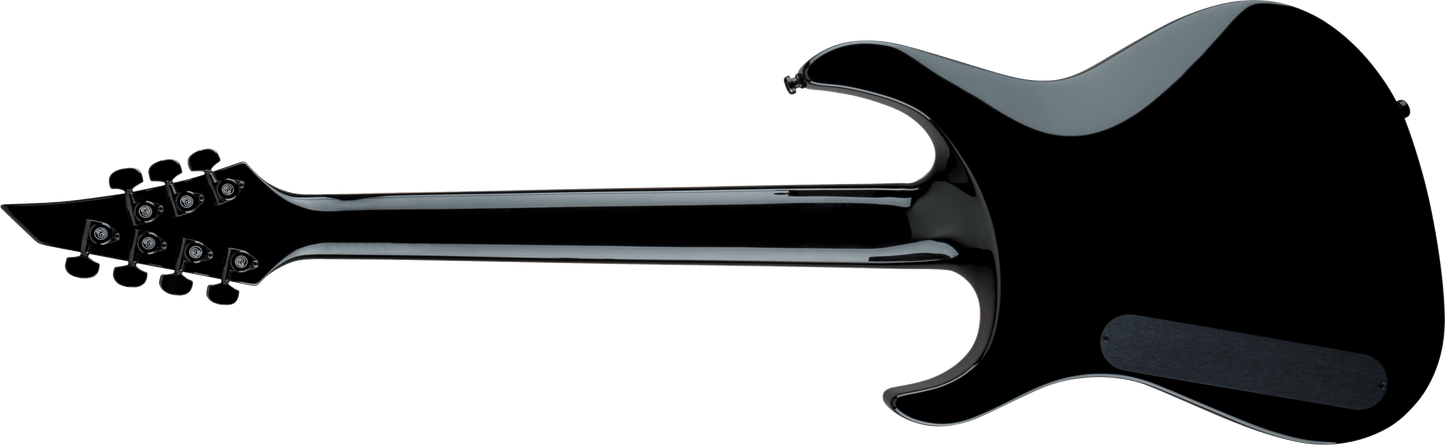

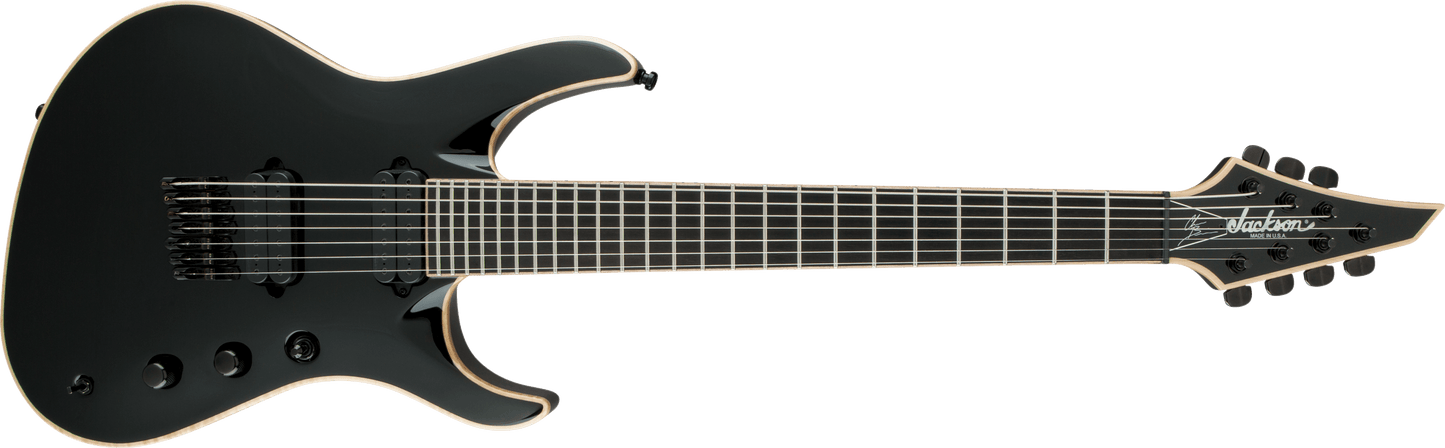

Gloss Black
Orientation
Right-Hand
Product Name
USA Signature Chris Broderick Soloist™ HT7, Ebony Fingerboard, Gloss Black
Series
Artist Signature
Hardware
Bridge
Jackson® Single-String Guitar Bridge
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
None
Pickguard
None
Strap Buttons
Ernie Ball® Locking
Strings
Nickel Plated Steel (.010-.064 Gauges)
Switch Tip
Black
Tuning Machines
Planet Waves® Auto-Trim
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207901000
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Headstock
Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
Headstock Binding
Masked Off Natural Maple
Neck Binding
Masked Off Natural Maple
Neck Construction
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish
Gloss / Painted
Neck Material
Quartersawn Maple
Number of Frets
24
Nut Material
Graph Tech TUSQ XL
Nut Width
1.875" (47.6 mm)
Position Inlays
None
String Nut
Graph Tech TUSQ XL
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
Specs
Accessories
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Body
Body
Mahogany
Body Binding
Masked off Natural Quilt Maple Binding
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Soloist™
Body Top
Arched Quilt Maple
Electronics
Auxiliary Switching
2-Position Mini-Toggle Kill Switch, Push/Pull Volume Coil Split, Push/Pull Tone Kill
Bridge Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Controls
Volume (Push-Pull Coil Split), Tone (Push-Pull On/Off Tone Control Activation)
Neck Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Pickup Configuration
HH
Special Electronics
2-Position Mini-Toggle Kill Switch
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color
Transparent Black
Orientation
Right-Hand
Product Name
USA Signature Chris Broderick Soloist™ HT7, Ebony Fingerboard, Transparent Black
Series
Artist Signature
Hardware
Bridge
Jackson® Single-String Guitar Bridge
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
None
Pickguard
None
Strap Buttons
Ernie Ball® Locking
Strings
Nickel Plated Steel (.010-.064 Gauges)
Switch Tip
Black
Tuning Machines
Planet Waves® Auto-Trim
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207901000
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Headstock
Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
Headstock Binding
Masked off Natural Quilt Maple
Neck Binding
Masked off Natural Quilt Maple
Neck Construction
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish
Gloss / Painted
Neck Material
Quartersawn Maple
Number of Frets
24
Nut Material
Graph Tech TUSQ XL
Nut Width
1.875" (47.6 mm)
Position Inlays
None
String Nut
Graph Tech TUSQ XL
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
Specs
Accessories
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Body
Body
Mahogany
Body Binding
Masked off Natural Quilt Maple Binding
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Soloist™
Body Top
Arched Quilt Maple
Electronics
Auxiliary Switching
2-Position Mini-Toggle Kill Switch, Push/Pull Volume Coil Split, Push/Pull Tone Kill
Bridge Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Controls
Volume (Push-Pull Coil Split), Tone (Push-Pull On/Off Tone Control Activation)
Neck Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Pickup Configuration
HH
Special Electronics
2-Position Mini-Toggle Kill Switch
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color
Transparent Blue
Orientation
Right-Hand
Product Name
USA Signature Chris Broderick Soloist™ HT7, Ebony Fingerboard, Transparent Blue
Series
Artist Signature
Hardware
Bridge
Jackson® Single-String Guitar Bridge
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
None
Pickguard
None
Strap Buttons
Ernie Ball® Locking
Strings
Nickel Plated Steel (.010-.064 Gauges)
Switch Tip
Black
Tuning Machines
Planet Waves® Auto-Trim
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207901000
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Headstock
Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
Headstock Binding
Masked off Natural Quilt Maple
Neck Binding
Masked off Natural Quilt Maple
Neck Construction
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish
Gloss / Painted
Neck Material
Quartersawn Maple
Number of Frets
24
Nut Material
Graph Tech TUSQ XL
Nut Width
1.875" (47.6 mm)
Position Inlays
None
String Nut
Graph Tech TUSQ XL
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
Specs
Accessories
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Body
Body
Mahogany
Body Binding
Masked off Natural Quilt Maple Binding
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Soloist™
Body Top
Arched Quilt Maple
Electronics
Auxiliary Switching
2-Position Mini-Toggle Kill Switch, Push/Pull Volume Coil Split, Push/Pull Tone Kill
Bridge Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Controls
Volume (Push-Pull Coil Split), Tone (Push-Pull On/Off Tone Control Activation)
Neck Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Pickup Configuration
HH
Special Electronics
2-Position Mini-Toggle Kill Switch
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color

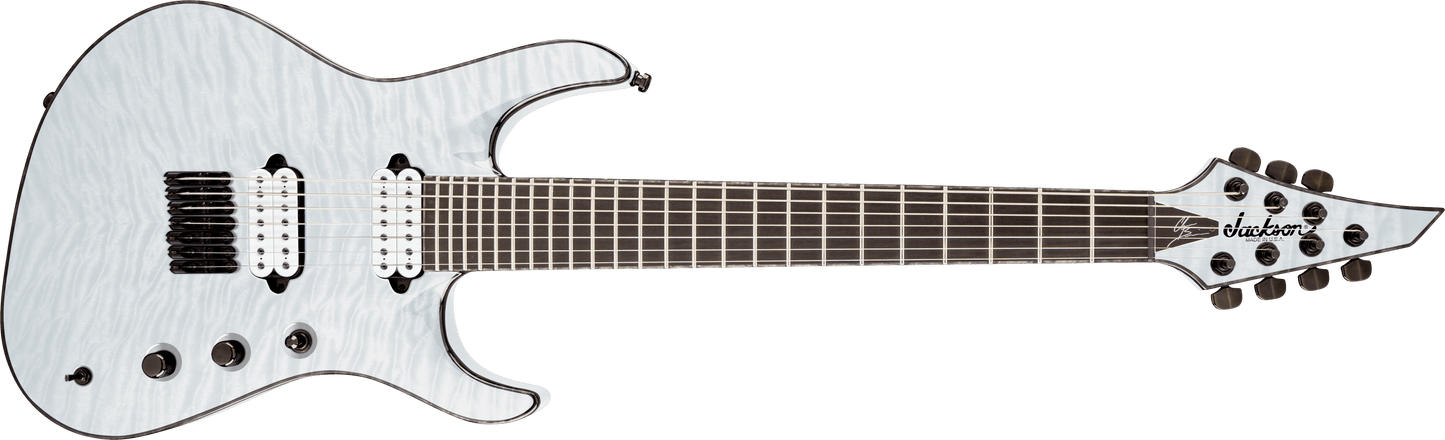

Transparent White
Orientation
Right-Hand
Product Name
USA Signature Chris Broderick Soloist™ HT7, Ebony Fingerboard, Transparent White
Series
Artist Signature
Hardware
Bridge
Jackson® Single-String Guitar Bridge
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
None
Pickguard
None
Strap Buttons
Ernie Ball® Locking
Strings
Nickel Plated Steel (.010-.064 Gauges)
Switch Tip
Black
Tuning Machines
Planet Waves® Auto-Trim
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207901000
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Headstock
Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
Headstock Binding
Masked off Natural Quilt Maple
Neck Binding
Masked off Natural Quilt Maple
Neck Construction
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish
Gloss / Painted
Neck Material
Quartersawn Maple
Number of Frets
24
Nut Material
Graph Tech TUSQ XL
Nut Width
1.875" (47.6 mm)
Position Inlays
None
String Nut
Graph Tech TUSQ XL
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
Specs
Accessories
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Body
Body
Mahogany
Body Binding
Masked off Natural Quilt Maple Binding
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Soloist™
Body Top
Arched Quilt Maple
Electronics
Auxiliary Switching
2-Position Mini-Toggle Kill Switch, Push/Pull Volume Coil Split, Push/Pull Tone Kill
Bridge Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Controls
Volume (Push-Pull Coil Split), Tone (Push-Pull On/Off Tone Control Activation)
Neck Pickup
Direct Mount DiMarzio® Chris Broderick CB7
Pickup Configuration
HH
Special Electronics
2-Position Mini-Toggle Kill Switch
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color

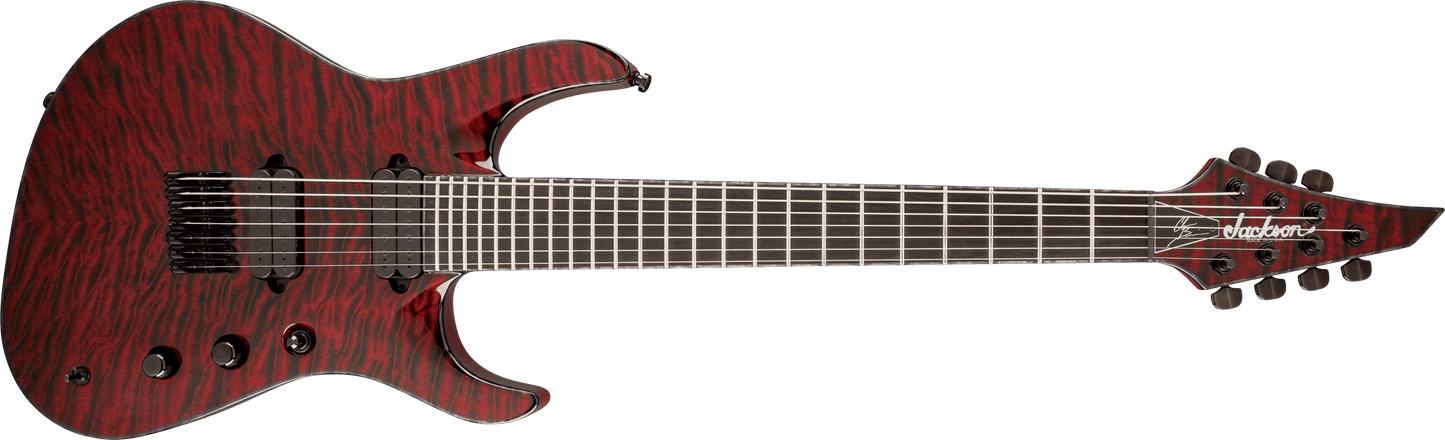

Transparent Red
Orientation
Right-Hand
Product Name
USA Signature Chris Broderick Soloist™ HT7, Ebony Fingerboard, Transparent Red
Series
Artist Signature
Hardware
Bridge
Jackson® Single-String Guitar Bridge
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
None
Pickguard
None
Strap Buttons
Ernie Ball® Locking
Strings
Nickel Plated Steel (.010-.064 Gauges)
Switch Tip
Black
Tuning Machines
Planet Waves® Auto-Trim
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207901000
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Headstock
Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
Headstock Binding
Masked off Natural Quilt Maple
Neck Binding
Masked off Natural Quilt Maple
Neck Construction
Neck-Through-Body with Graphite Reinforcement and Scarf Joint
Neck Finish
Gloss / Painted
Neck Material
Quartersawn Maple
Number of Frets
24
Nut Material
Graph Tech TUSQ XL
Nut Width
1.875" (47.6 mm)
Position Inlays
None
String Nut
Graph Tech TUSQ XL
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
